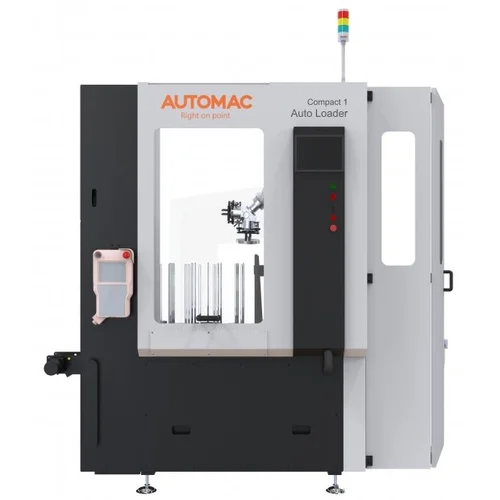

Lathe automatic feeder
Automatic loading and unloading
Automatic loading and unloading
Clamping weight:2kg
Clamping range: ø30mm ~ ø120mm
Maximum load of material tray:15kg
Number of trays:8 stations
Floor area: W2000mm X D600mm
Clamping weight:11.02 lbs
Clamping range: ø1.18inch ~ ø4.73inch
Maximum load of material tray:33.07 lbs
Number of trays: 8 stations
Floor area: W78.74inch X D23.62inch

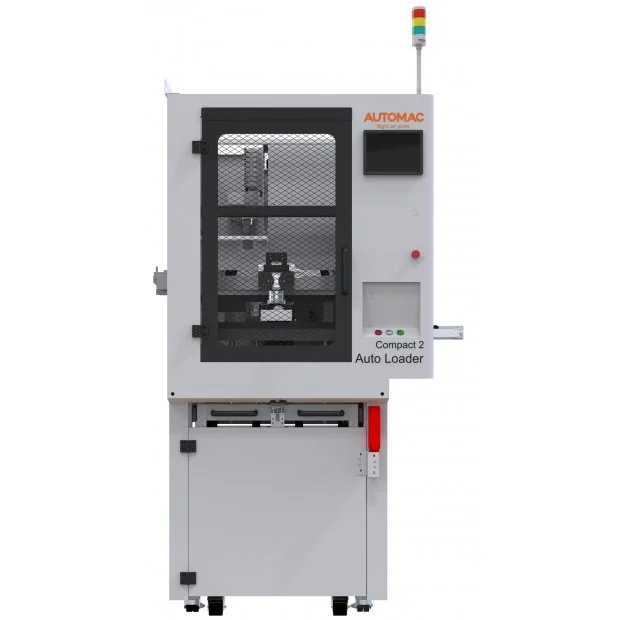

Milling machine automatic feeding system
Automatic loading and unloading
Quick material change
Automatic loading and unloading
Quick material change
Clamping weight:2kg
Clamping range: W150mm X D150mm X H110mm
Feeding tray size: 550mm X 550mm
Maximum load of material tray:15kg
Number of trays: 5 pieces
Maximum handling speed:15m/min
Controller: Mitsubishi
Floor area: W1150XD2000XH1950mm
Clamping weight:4.41 lbs
Clamping range: W5.91inch X D5.91inch X H4.33inch
Feeding tray size:21.65inch X 21.65inch
Maximum load of material tray:33.07 lbs
Number of trays:5 pieces
Maximum handling speed:15m/min
Controller: Mitsubishi
Floor area: W45.27inch X D78.74inch X H76.77inch
Multifunctional robotic arm.
。Small footprint
。Integrated structural
。7" LCD MMI Monitor X1
。Zero Point Clamping Jaws
。Small footprint
。Integrated structural
。7" LCD MMI Monitor X1
。Zero Point Clamping Jaws
Clamping Weight Capacity：14kg
Clamping Dimension：W150mm X D150mm X H220mm(Min. Pallet Size)
Max. Load of Parts Pallet：14kg
No. of Pallets：15
Controller：Mitsubishi
Floor Space：W2400mm X D1100mm X H2500mm
Automatic parts loading/unloading
Rapid Change of Parts
Clamping Weight Capacity：30.87 lbs
Clamping Dimension：W5.91inch X D5.91 X H8.66inch(Min. Pallet Size)
Max. Load of Parts Pallet:30.87 lbs
No. of Pallets：15
Controller：Mitsubishi
Floor Space：W94.49inch X D43.31inch X H98.43inch
Automatic parts loading/unloading
Rapid Change of Parts
