DL-1512
| Table size | 1,400 X 1,200 mm |
| Spinle nose to table surface | 150 ~ 950 mm |
| ATC Capcity | 24 tools |
X travel:1,500 mm
Y travel:1,220 mm
Z travel:800 mm
Spinle nose to table surface:150 ~ 950 mm
Distance between columns:1,400 mm
Table size:1,400 X 1,200 mm
T-SLOT (Q'TY X size X dist):7 X 22 X 150 mm
MAX.Table load:3,000 kg
CNC Control:Fanuc/Mitsubishi/Siemens
Spindle transmission:Direct type
Spindle taper:BT-40
Spindle Speed:10,000rpm
ATC Capcity:24 tools
DL-2112
| Table size | 2,000 X 1,100 mm |
| Spinle nose to table surface | 150 ~ 950 mm |
| ATC Capcity | 24 tools |
X travel:2,100 mm
Y travel:1,220 mm
Z travel:800 mm
Spinle nose to table surface:150 ~ 950 mm
Distance between columns:1,400 mm
Table size:2,000 X 1,100 mm
T-SLOT (Q'TY X size X dist):7 x 22 x 150 mm
MAX.Table load:4,000 kg
CNC Control:Fanuc/Mitsubishi/Siemens
Spindle transmission:Direct type
Spindle taper:BT-40
Spindle Speed:10,000rpm
ATC Capcity:24 tools
DL-3112
| Table size | 3,000 X 1,100 mm |
| Spinle nose to table surface | 150 ~ 950 mm |
| ATC Capcity | 24 tools |
X travel:3,100 mm
Y travel:1,220 mm
Z travel:800 mm
Spinle nose to table surface:150 ~ 950 mm
Distance between columns:1,400 mm
Table size:3,000 X 1,100 mm
T-SLOT (Q'TY X size X dist):7 X 22 X 150 mm
MAX.Table load:5,000 kg
CNC Control:Fanuc/Mitsubishi/Siemens
Spindle transmission:Direct type
Spindle taper:BT-40
Spindle Speed:10,000rpm
ATC Capcity:24 tools

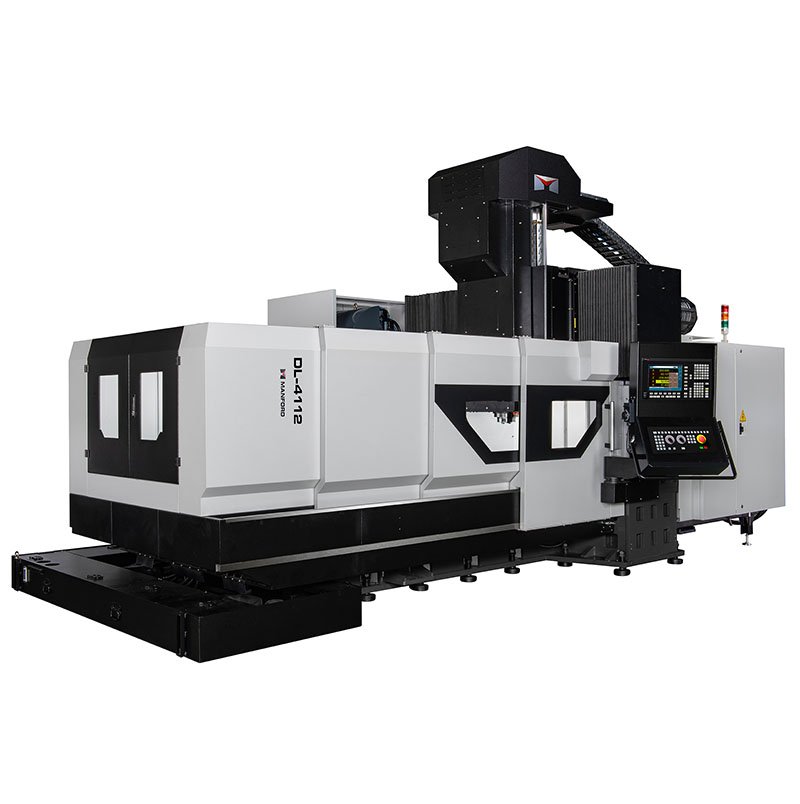

DL-4112
| Table size | 4,000 X 1,100 mm |
| Spinle nose to table surface | 150 ~ 950 mm |
| ATC Capcity | 24 tools |
X travel:4,100 mm
Y travel:1,220 mm
Z travel:800 mm
Spinle nose to table surface:150 ~ 950 mm
Distance between columns:1,400 mm
Table size:4,000 X 1,100 mm
T-SLOT (Q'TY X size X dist):7 X 22 X 150 mm
MAX.Table load:5,000 kg
CNC Control:Fanuc/Mitsubishi/Siemens
Spindle transmission:Direct type
Spindle taper:BT-40
Spindle Speed:10,000rpm
ATC Capcity:24 tools
