High Efficiency, High Precision, Time-Saving
Twin-spindles and single-turret plus X/Y/Z-axis motion
Suitable for processing complex workpieces
Y-Axis Function
The Y-axis features a lightweight structure and is directly driven by a servo for high positioning accuracy.
Box ways on the Y-axis help to increase stability during cutting.
Y-axis travel is 100mm (±50mm), allowing for machining various workpieces with high efficiency.
CS-Axis Function
The CS-axis function in combination with the live tooling turret enable the machine to perform milling, drilling and tapping operations with only a single setup.
CS-axis is equipped with a rotary encoder for high orientating accuracy.
Sub-Spindle
The sub-spindle can pick the workpiece directly from the main spindle by programming, allowing for machining of the other side of the workpiece. This saves machining time as the spindle oes not stop for loading or unloading the workpiece.

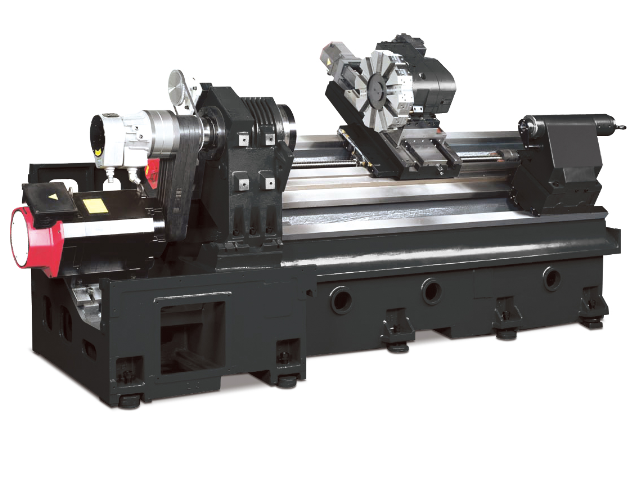

BML-600L
| Chuck | 10" inch/12"(OPT) |
| Turret type | Hydraulic |
| Tool storage capacity | 10 tools |
Max. Swing over bed:Ø600 mm
Max. Swing over saddle:Ø450 mm
Max.Turning diameter:Ø420 mm
Max. Working Length:STD1,280 mm(10")/1,260 mm(OPT:12")
Distance between centers:1,504 mm(OPT:10")/1,494 mm(OPT:12")
X travel:210+20 mm
Z travel:1,330 mm(10")/1,320 mm(OPT:12")
C-axis (Optional):360˚(0.001˚)
CNC Control:Fanuc/Mitsubishi/Siemens
Spindle Speed:50~3,500 rpm(A2-8)/(OPT:A2-8 50~2,500 rpm)
Spindle nose:A2-8
Chuck:10" inch/12"(OPT)
Spindle bearing ID:Ø120 mm(10")/Ø130 mm(OPT:12")
Max. Bar capacity:Ø75 mm(10")/Ø91 mm(OPT:12")
Turret type:Hydraulic
Tool storage capacity:10
Tool shank size:25x25
Tailstock travel:1,000 mm
Quill travel:120 mm
Tailstock orientation:Automatic
BML-600LY
| Chuck | 10" inch/12"(OPT) |
| Turret type | BMT65 |
| Tool storage capacity | 12 tools |
Paired with:BMT65 Turret
Max. Swing over bed:Ø600 mm
Max. Swing over saddle:Ø450 mm
Max.Turning diameter:Ø380 mm
Max. Working Length:1,220 mm(10")/1,200 mm(OPT:10")
Distance between centers:1,503 mm(10")/1,493 mm(OPT:12")
X axis travel:190+16 mm
Y axis travel:±50 mm
Z axis travel:1,265 mm
C-axis:360˚(0.001˚)
CNC Control:Fanuc/Mitsubishi/Siemens
Spindle Speed:50~3,500 rpm(10")/(OPT:12" 50~2,500 rpm)
Spindle nose:A2-8
Chuck:10" inch/12"(OPT)
Spindle bearing ID:Ø120 mm(10")/Ø130 mm(OPT:12")
Max. Bar capacity:Ø75 mm/Ø91 mm
Turret type:Live-tooling
Tool storage capacity:12
Tool shank size:25x25
Tailstock travel:1,000 mm
Quill travel:120 mm
Tailstock orientation:Automatic
BML-600LT
| Chuck | 10" inch/12"(OPT) |
| Turret type | Hydraulic |
| Tool storage capacity | 10 tools |
Max. Swing over bed:Ø600 mm
Max. Swing over saddle:Ø450 mm
Max.Turning diameter:Ø420 mm
Max. Working Length::STD:1,210 mm(10")/1,190 mm(OPT:12")
Distance between centers:1,494 mm(10")/1,474 mm(OPT:12")
X travel:210+20 mm
Z travel:1,300 mm
C-axis (Optional):360˚(0.001˚)
W axis travel:1,186 mm
CNC Control:Fanuc/Mitsubishi/Siemens
Spindle Speed:50~3,500 rpm(A2-6)/(OPT:A2-8 50~2,500 rpm)
Spindle nose:A2-8
Chuck:10" inch/12"(OPT)
Spindle bearing ID:Ø120 mm(A2-6)/Ø130 mm(OPT:A2-8)
Max. Bar capacity:Ø75 mm/Ø91 mm
Chuck size:STD:10"+6"(W)/OPT:12"+6(W)"
Turret type:Hydraulic
Tool storage capacity:12
Tool shank size:25x25
BML-600LTY
| Chuck | 10" inch/12"(OPT) |
| Turret type | BMT65 |
| Tool storage capacity | 12 tools |
Paired with:BMT65 Turret
Max. Swing over bed:Ø600 mm
Max. Swing over saddle:Ø450 mm
Max.Turning diameter:Ø380 mm
Max. Working Length::STD:1,190 mm(10")/1,170 mm(OPT:12")
Distance between centers:1,494 mm(10")/1,474 mm(OPT:12")
X travel:190+16 mm
Y axis travel:±50 mm
Z travel:1,190 mm
C-axis (Optional):360˚(0.001˚)
W axis travel:1,186 mm
CNC Control:Fanuc/Mitsubishi/Siemens
Spindle Speed:50~3,500 rpm(A2-6)/(OPT:A2-8 50~2,500 rpm)
Spindle nose:A2-8
Sub-spindle nose:A2-5
Chuck size:STD:10"+6"(W)/OPT:12"+6(W)"
Spindle bearing ID:Ø120 mm(A2-6)/Ø130 mm(OPT:A2-8)
Max. Bar capacity:Ø75 mm/Ø91 mm
Turret type:Live-tooling
Tool storage capacity:12
Tool shank size:25x25
