SBL-5/SBL-5M
This model use linear slide rails to achieve high precision and rigidity.
Capacity
Max. Swing over bed:Ø530 mm
Max. Swing over saddle:Ø300 mm
Max.Turning diameter:Ø370 mm
Max. Working Length:400 mm
Travel
X axis travel :185+15 mm
X axis motor :1.5 kw
Z axis travel :400 mm
Z axis motor :1.5 kw
X axis rapid speed:30 m/min
Z axis rapid speed:30 m/min
X axis cutting feed rate:10 m/min
Z axis cutting feed rate:10 m/min
Spindle
Spindle speed:6,000 rpm
Spindle nose :A2-5
Chuck:6" inch
Spindle motor:9/11 kw
Spindle bearing ID:Ø80 mm
Spindle bore:Ø56 mm
Max. Bar capacity:Ø44 mm
Turret
Turret type :Hydraulic pressure
Tool storage capacity:12
Tool shank size:20 mm
Max. Boring bar Dia.:Ø32 mm
Tailstock
Tailstock travel:350 mm
Quill travel:75 mm
Taper of Center:MT4
Quill Dia.:Ø75 mm
Tailstock orientation:Manual
Lathe center drive mode:Hydraulic pressure
Other Items
Power requirement:25 KVA
Max. Swing over bed:Ø530 mm
Max. Swing over saddle:Ø300 mm
Max.Turning diameter:Ø370 mm
Max. Working Length:400 mm
Travel
X axis travel :185+15 mm
X axis motor :1.5 kw
Z axis travel :400 mm
Z axis motor :1.5 kw
X axis rapid speed:30 m/min
Z axis rapid speed:30 m/min
X axis cutting feed rate:10 m/min
Z axis cutting feed rate:10 m/min
Spindle
Spindle speed:6,000 rpm
Spindle nose :A2-5
Chuck:6" inch
Spindle motor:9/11 kw
Spindle bearing ID:Ø80 mm
Spindle bore:Ø56 mm
Max. Bar capacity:Ø44 mm
Turret
Turret type :Hydraulic pressure
Tool storage capacity:12
Tool shank size:20 mm
Max. Boring bar Dia.:Ø32 mm
Tailstock
Tailstock travel:350 mm
Quill travel:75 mm
Taper of Center:MT4
Quill Dia.:Ø75 mm
Tailstock orientation:Manual
Lathe center drive mode:Hydraulic pressure
Other Items
Power requirement:25 KVA
Capacity
Max. Swing over bed:Ø20.87 inch
Max. Swing over saddle:Ø11.81 inch
Max.Turning diameter:Ø14.57 inch
Max. Working Length:15.75 inch
Travel
X axis travel :7.28+0.59 inch
X axis motor :1.5 kw
Z axis travel :15.75 inch
Z axis motor :1.5 kw
X axis rapid speed:30 m/min
Z axis rapid speed:30 m/min
X axis cutting feed rate:10 m/min
Z axis cutting feed rate:10 m/min
Spindle
Spindle speed:6,000 rpm
Spindle nose :A2-5
Chuck:6" inch
Spindle motor:9/11 kw
Spindle bearing ID:Ø3.15 inch
Spindle bore:Ø2.21 inch
Max. Bar capacity:Ø1.73 inch
Turret
Turret type :Hydraulic pressure
Tool storage capacity:12
Tool shank size:0.79 inch
Max. Boring bar Dia.:Ø1.26 inch
Tailstock
Tailstock travel:13.78 inch
Quill travel:2.95 inch
Taper of Center:MT4
Quill Dia.:Ø2.95 inch
Tailstock orientation:Manual
Lathe center drive mode:Hydraulic pressure
Other Items
Power requirement:25 KVA
Max. Swing over bed:Ø20.87 inch
Max. Swing over saddle:Ø11.81 inch
Max.Turning diameter:Ø14.57 inch
Max. Working Length:15.75 inch
Travel
X axis travel :7.28+0.59 inch
X axis motor :1.5 kw
Z axis travel :15.75 inch
Z axis motor :1.5 kw
X axis rapid speed:30 m/min
Z axis rapid speed:30 m/min
X axis cutting feed rate:10 m/min
Z axis cutting feed rate:10 m/min
Spindle
Spindle speed:6,000 rpm
Spindle nose :A2-5
Chuck:6" inch
Spindle motor:9/11 kw
Spindle bearing ID:Ø3.15 inch
Spindle bore:Ø2.21 inch
Max. Bar capacity:Ø1.73 inch
Turret
Turret type :Hydraulic pressure
Tool storage capacity:12
Tool shank size:0.79 inch
Max. Boring bar Dia.:Ø1.26 inch
Tailstock
Tailstock travel:13.78 inch
Quill travel:2.95 inch
Taper of Center:MT4
Quill Dia.:Ø2.95 inch
Tailstock orientation:Manual
Lathe center drive mode:Hydraulic pressure
Other Items
Power requirement:25 KVA
Capacity
Max. Swing over bed:Ø530 mm
Max. Swing over saddle:Ø300 mm
Max.Turning diameter:Ø298 mm
Max. Working Length:380 mm
Travel
X axis travel :185+15 mm
X axis motor :1.5 kw
Z axis travel :400 mm
Z axis motor :1.5 kw
X axis rapid speed:30 m/min
Z axis rapid speed:30 m/min
X axis cutting feed rate:10 m/min
Z axis cutting feed rate:10 m/min
Spindle
Spindle speed:6,000 rpm
Spindle nose :A2-5
Chuck:6" inch
Spindle motor:9/11 kw
Spindle bearing ID:Ø80 mm
Spindle bore:Ø56 mm
Max. Bar capacity:Ø44 mm
Turret

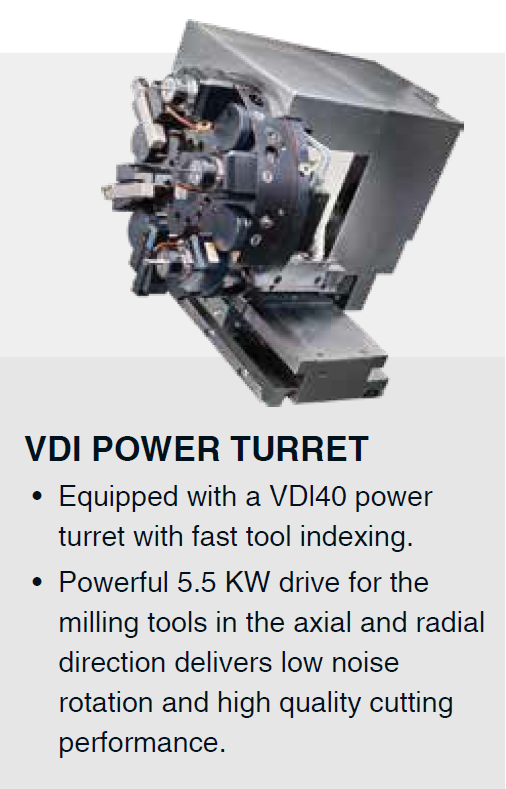

Turret type :Power
Tool storage capacity:12
Tool shank size:VDI30
Max. Boring bar Dia.:Ø25 mm
Power turret motor
Maximum speed:5000
Motor Power:2.2/3.7 Kw
Tailstock
Tailstock travel:350 mm
Quill travel:75 mm
Taper of Center:MT4
Quill Dia.:Ø75 mm
Tailstock orientation:Manual
Lathe center drive mode:Hydraulic pressure
Other Items
Power requirement:25 KVA
Max. Swing over bed:Ø530 mm
Max. Swing over saddle:Ø300 mm
Max.Turning diameter:Ø298 mm
Max. Working Length:380 mm
Travel
X axis travel :185+15 mm
X axis motor :1.5 kw
Z axis travel :400 mm
Z axis motor :1.5 kw
X axis rapid speed:30 m/min
Z axis rapid speed:30 m/min
X axis cutting feed rate:10 m/min
Z axis cutting feed rate:10 m/min
Spindle
Spindle speed:6,000 rpm
Spindle nose :A2-5
Chuck:6" inch
Spindle motor:9/11 kw
Spindle bearing ID:Ø80 mm
Spindle bore:Ø56 mm
Max. Bar capacity:Ø44 mm
Turret
Turret type :Power
Tool storage capacity:12
Tool shank size:VDI30
Max. Boring bar Dia.:Ø25 mm
Power turret motor
Maximum speed:5000
Motor Power:2.2/3.7 Kw
Tailstock
Tailstock travel:350 mm
Quill travel:75 mm
Taper of Center:MT4
Quill Dia.:Ø75 mm
Tailstock orientation:Manual
Lathe center drive mode:Hydraulic pressure
Other Items
Power requirement:25 KVA
Capacity
Max. Swing over bed:Ø20.87 inch
Max. Swing over saddle:Ø11.81 inch
Max.Turning diameter:Ø11.73 inch
Max. Working Length:14.96 inch
Travel
X axis travel :7.28+0.59 inch
X axis motor :1.5 kw
Z axis travel :15.75 inch
Z axis motor :1.5 kw
X axis rapid speed:30 m/min
Z axis rapid speed:30 m/min
X axis cutting feed rate:10 m/min
Z axis cutting feed rate:10 m/min
Spindle
pindle speed:6,000 rpm
Spindle nose :A2-5
Chuck:6" inch
Spindle motor:9/11 kw
Spindle bearing ID:Ø3.15 inch
Spindle bore:Ø2.21 inch
Max. Bar capacity:Ø1.73 inch
Turret
Turret type :Power
Tool storage capacity:12
Tool shank size:VDI30
Max. Boring bar Dia.:Ø0.99 inch
Power turret motor
Maximum speed:5000
Motor Power:2.2/3.7 Kw
Tailstock
Tailstock travel:13.78 inch
Quill travel:2.95 inch
Taper of Center:MT4
Quill Dia.:Ø2.95 inch
Tailstock orientation:Manual
Lathe center drive mode:Hydraulic pressure
Other Items
Power requirement:25 KVA
Max. Swing over bed:Ø20.87 inch
Max. Swing over saddle:Ø11.81 inch
Max.Turning diameter:Ø11.73 inch
Max. Working Length:14.96 inch
Travel
X axis travel :7.28+0.59 inch
X axis motor :1.5 kw
Z axis travel :15.75 inch
Z axis motor :1.5 kw
X axis rapid speed:30 m/min
Z axis rapid speed:30 m/min
X axis cutting feed rate:10 m/min
Z axis cutting feed rate:10 m/min
Spindle
pindle speed:6,000 rpm
Spindle nose :A2-5
Chuck:6" inch
Spindle motor:9/11 kw
Spindle bearing ID:Ø3.15 inch
Spindle bore:Ø2.21 inch
Max. Bar capacity:Ø1.73 inch
Turret
Turret type :Power
Tool storage capacity:12
Tool shank size:VDI30
Max. Boring bar Dia.:Ø0.99 inch
Power turret motor
Maximum speed:5000
Motor Power:2.2/3.7 Kw
Tailstock
Tailstock travel:13.78 inch
Quill travel:2.95 inch
Taper of Center:MT4
Quill Dia.:Ø2.95 inch
Tailstock orientation:Manual
Lathe center drive mode:Hydraulic pressure
Other Items
Power requirement:25 KVA
